Clean Room Plus Products
Clean Rooms Ceilings

WALLS

Clean Room Plus Wall Products

INNOVATIVE WALL SYSTEMS

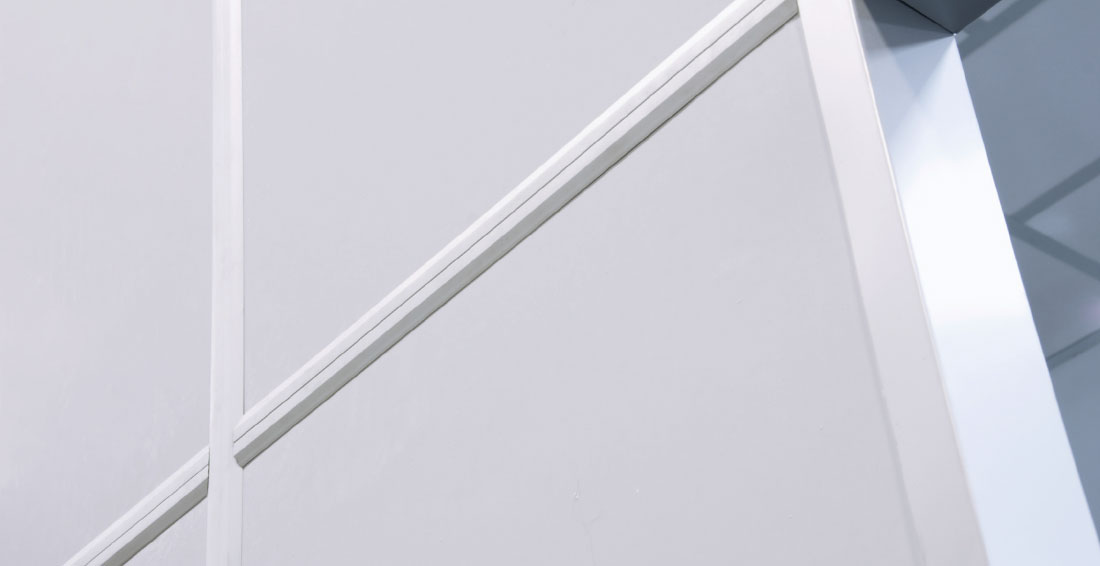

We offer a complete range of FRP panels, a variety of cores and PVC and aluminum accessories to provide a complete wall solution for food processing, pharmaceutical manufacturing, and clean room environments. Our innovative Clean Rooms Plus panels create a functional, attractive, and cost-effective wall system that requires minimal maintenance and looks great.


FEATURES & BENEFITS

Use of aluminum extrusion eliminates the need for plastic extrusion, which is a traditional weak link in FRP wall systems. Our panels:

  • Are installed flat and remain flat
  • Have joints with a fully positive seal
  • Feature panel joints or panels that may be easily removed or replaced as required
  • Minimize or eliminate exposed rivets
  • Are available in 4' wide panels
  • Are engineered specifically for your project – that includes custom reinforcement, length, and FRP thickness

A WIDE RANGE OF FRP PANELS

Fibre glass reinforced panels (FRP) provide one of the best finishes available to protect various substrates from damage in food production environments, which are constantly moist from manufacturing, processing and cleanup activities. FRP panels provide you with unparalleled service for all controlled environments.

For more than 20 years, Clean Rooms Plus has been working with FRP panels—which offer extreme durability and ease of cleaning—to develop state-of-the-art finish systems. Most importantly, our installers have extensive experience installing FRP panels to a varied range of specifications.

Another benefit: FRP panels come in various sizes and thicknesses. Although these factors determine how a panel will perform, the basic characteristics of FRP panels manufactured remain the same.


THRESHOLD EXTRUSION:

Clean Rooms Plus uses a modular, economical, easy and fast to apply threshold extrusion system. It is definitely designed as a heavy duty joint System.

threshold extrusion system
  • MATERIAL:
    6063-T5 Aluminum Stock
  • FINISH:
    Standard finish clear anodizing .0004
  • OPTIONAL FINISHES:
    Powder coatings
    Coloured anodizing
    Baked enamel paint
  • SPECIFICATIONS:
    Weight per foot: .249 lbs.
  • STANDARD LENGTHS:
    8', 10', 12'
  • Threshold Extrusion has countersunk holes punched every 8' to accept a flathead S.S. Screw. All Joints are overlapped.

threshold extrusion system



Clean Room Plus Ceilings Products
Clean Rooms Ceilings

Ceilings

CUSTOM CEILINGS FOR EVERY
CLEAN ROOM ENVIRONMENT


STRENGTH

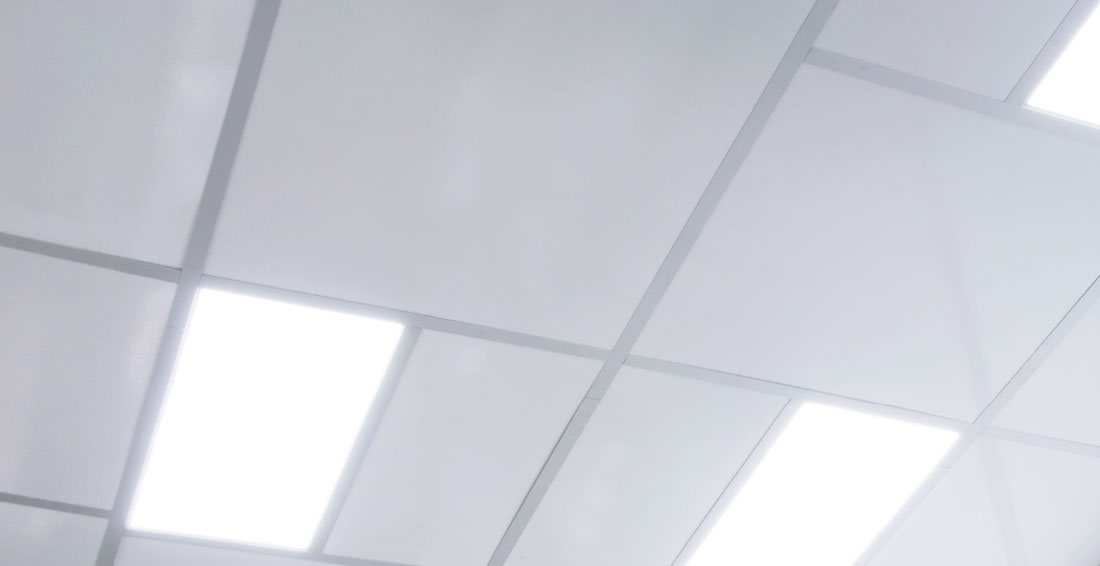

The Clean Rooms Plus Ceiling System is constructed of precision-engineered aluminum, providing strength unsurpassed by any T-bar system on the market today. The patented rail-lock action offers durability and provides all the support necessary to allow the Clean Rooms Plus Grid to become a frame for a load-bearing ceiling when used in conjunction with our ceiling panel. When using these components, the Clean Rooms Plus Ceiling System exceeds American National Standard A58.1-1982 for accessible ceilings.


FLEXIBILITY & ACCESSIBILITY

The Clean Rooms Plus Ceiling System offers unprecedented drop ceiling flexibility. Standard panel sizes range from 2'×2' up to 4'×8' or larger. With the strength and integrity offered by our rail lock system, any section of an existing ceiling may be easily disassembled and reassembled using the original pieces without compromising the integrity of the rest of the ceiling. The superior strength of the Clean Rooms Plus Ceiling System also allows for innovative designs to accommodate any additional light fixtures and mechanical services required in the ceiling.


CEILING GRIDS & SPECIFICATIONS

The Clean Rooms Plus Ceiling System is a patented rail-lock action system specifically designed to provide exceptional strength and integrity to the grid. In addition, it allows for the removal or replacement of T-Bars with a simple ¼ turn. For those special finishing touches, the H.D. aluminum can be anodized or custom coloured to create a functional and attractive grid system.

  • Suspensions: Standard. Ceiling: 12 GA annealed wire @ 4' on centre
  • Load-bearing Ceiling: 9 GA annealed wire with ¼" turn-buckle for adjustment @ 3' on centre
  • Grid and panels are USDA and CFIA accepted.
  • Accessible ceiling meets and exceeds American National Standard A 58.1-1982 for accessible ceilings
FINISH

The Clean Rooms Plus Ceiling System’s grid standard is a heavy-duty, clear anodized finish used extensively in severe applications found in food plant environments. This finish offers superior protection under most conditions. Custom anodized finishes, colours, as well as custom paint finishes are available. The butt fitting joints, seams and the incorporation of a high gloss smooth FRP or HDPE skinned panel may be used to raise the finish level to clean room standards.

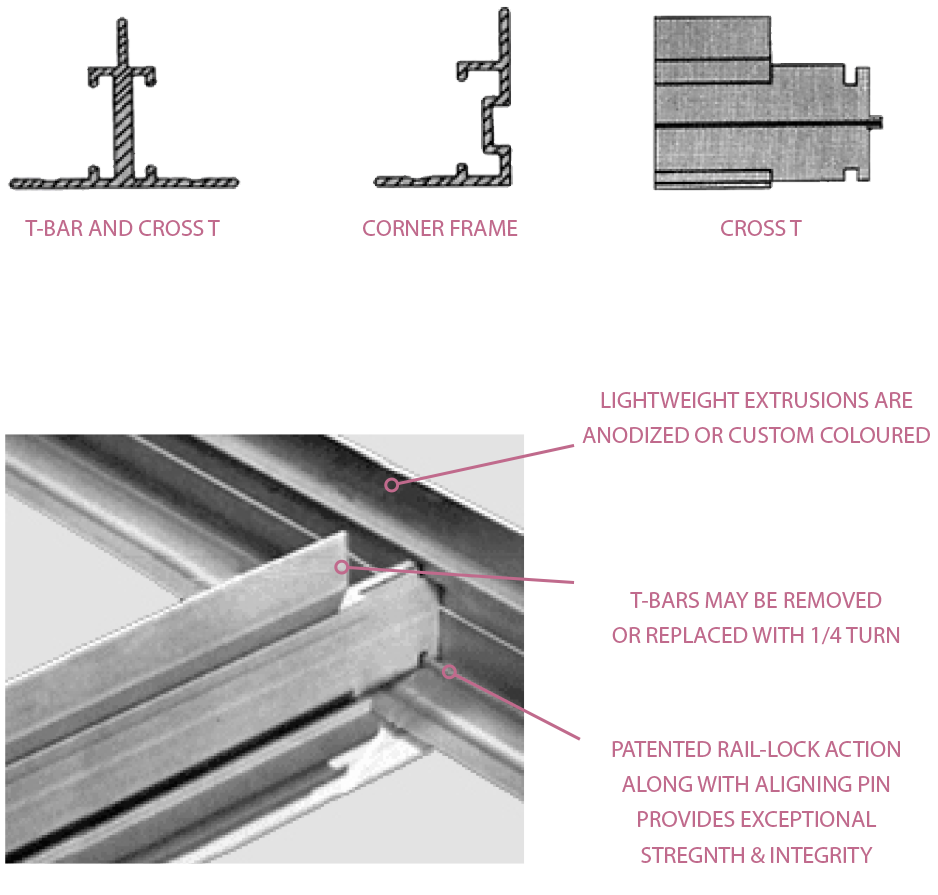

Clean Rooms Plus patented rail-lock system
  • MATERIAL:
    The aluminum T-bar and Corner Frame are made from 6063-T5 aluminum stock.
  • FINISH:
    Standard finish: clear anodizing.
  • OPTIONAL FINISHES:
    Powder coatings
    Coloured anodizing
    Baked enamel paint
  • CORNER FRAME:
    Width: 1.14 inches
    Height: 1.63 inches
    Lbs. Per Ft.: .265
    Surface area: .224 sq. inches
  • T-BAR AND CROSS T:
    Width: 2 inches
    Height: 1.63 inches
    Lbs. Per Ft.: 403
    Surface area: .341 sq. inches
    Perimeter: 8.5 inches
  • All accessories are made of anodized aluminum or stainless steel.

Clean Rooms Plus patented rail-lock system



Clean Rooms Lighting

Lighting

Clean Room Plus Lighting Products

ACHIEVE PEAK PERFORMANCE
WITH CUSTOMIZED LIGHTING

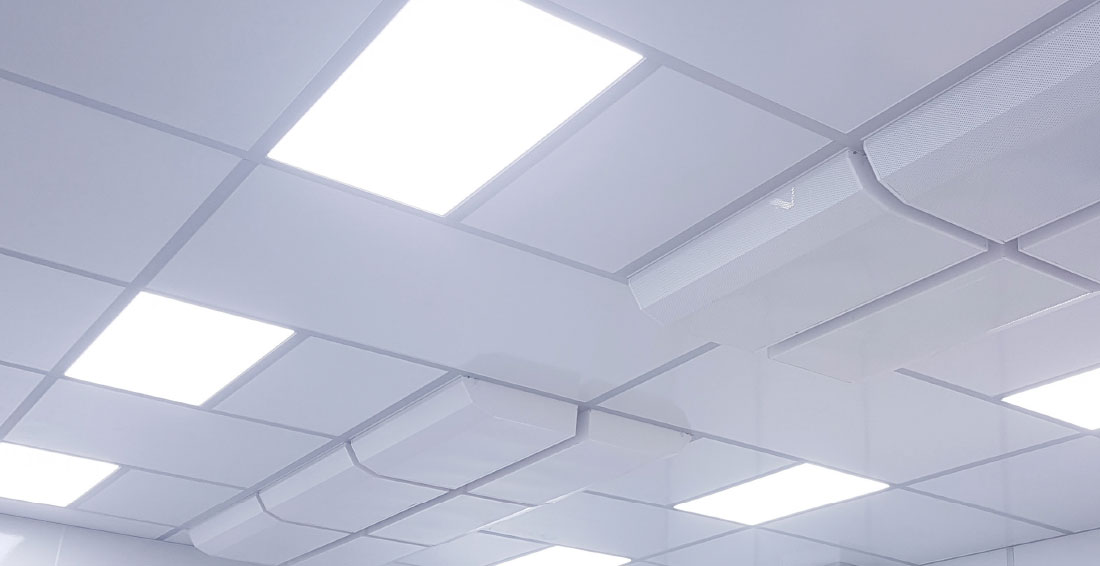

Clean Rooms Plus fixtures are the ideal solution for all clean room environments. In order to conform to regulations and standards outlined in the various standards applicable to your industry, good manufacturing practices generally focus on the flush fitting of light fixtures and correct light intensity used in applicable areas. However, there are many other options to examine and considerations to bear in mind when building your clean room and customizing your space. Optimizing visibility for employees and reducing your operating expenses—though not necessarily on any list of requirements for your industry—are definitely worth adding to your company’s list of lighting must-haves.


OUR LIGHTING SYSTEMS: FEATURES AND BENEFITS
  • Diffusion: layers of light shaping diffusers provide effective light distribution without glare or hot spots
  • Low operating cost
  • Frame: white powder coated extruded aluminum
  • Ideal for hygienic food, pharmaceutical and biotech environments
  • White LEDs are offered in 4000K and 5000K colour temperature
  • Flush mounted frame for ceilings

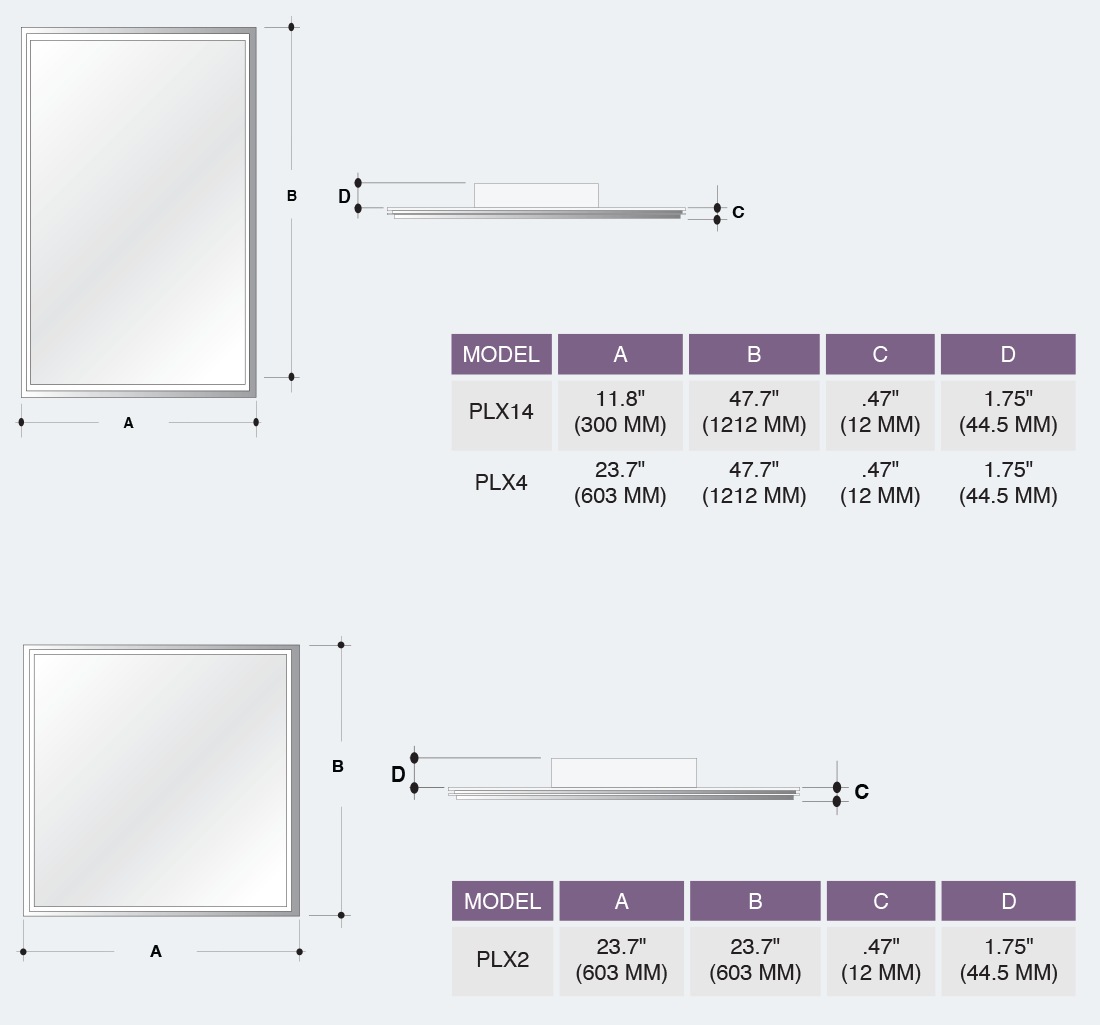

  • Available Sizes: standard size 2' x 4'; also available in 1' x 4' and 2' x 2'
Clean Rooms Plus Ceilings
Clean Rooms Plus Ceilings
Clean Rooms Plus Ceilings
Clean Rooms Plus Ceilings


Clean Room Plus Doors Products
Clean Rooms Doors

DOORS & WINDOWS

DOORS & WINDOWS
FOR EVERY CLEAN ROOM LAYOUT

The finishing touches are an important part of any job done right. That’s why Clean Rooms Plus Door and Window Systems are engineered in a variety of styles and sizes, with no additional charge for custom sizing or construction. Rest assured: we’ll do what it takes to satisfy your organization’s unique clean room requirements.


DOORS

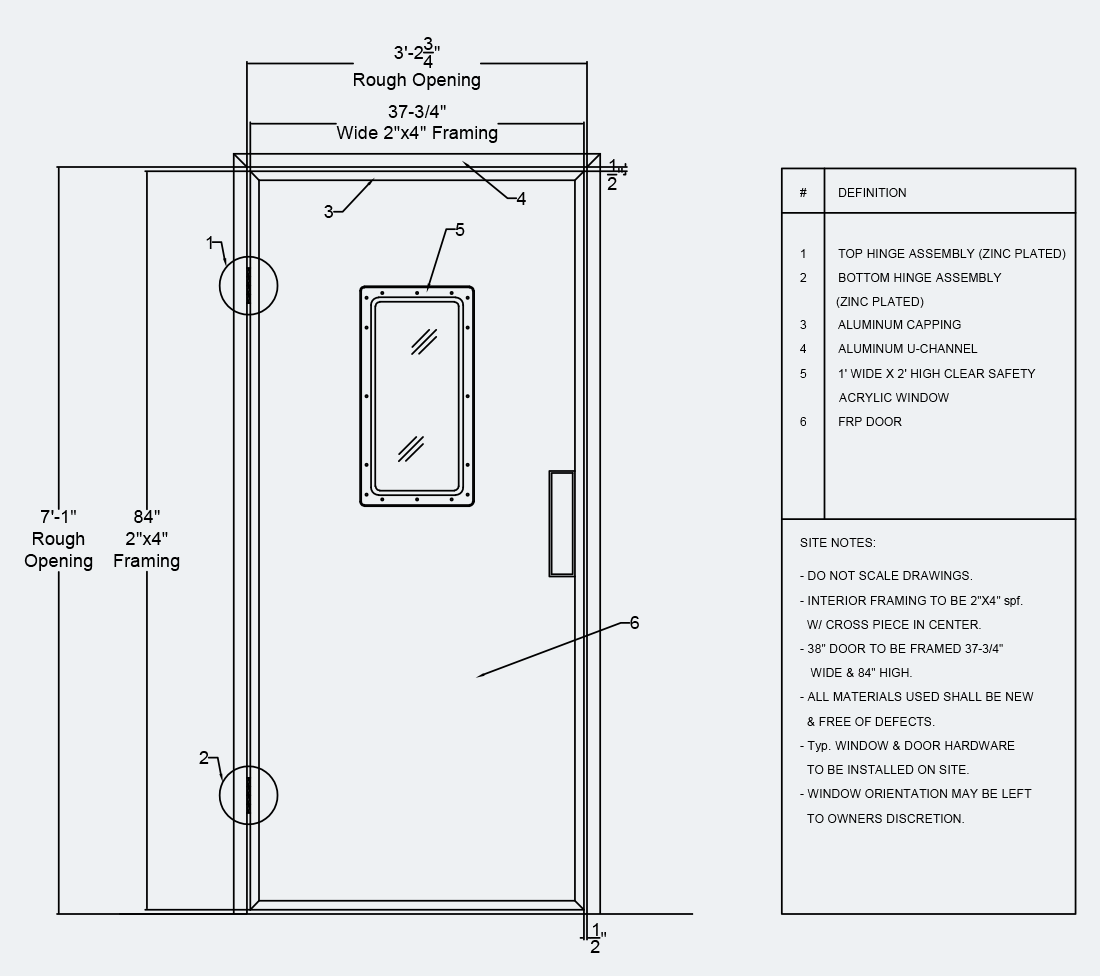

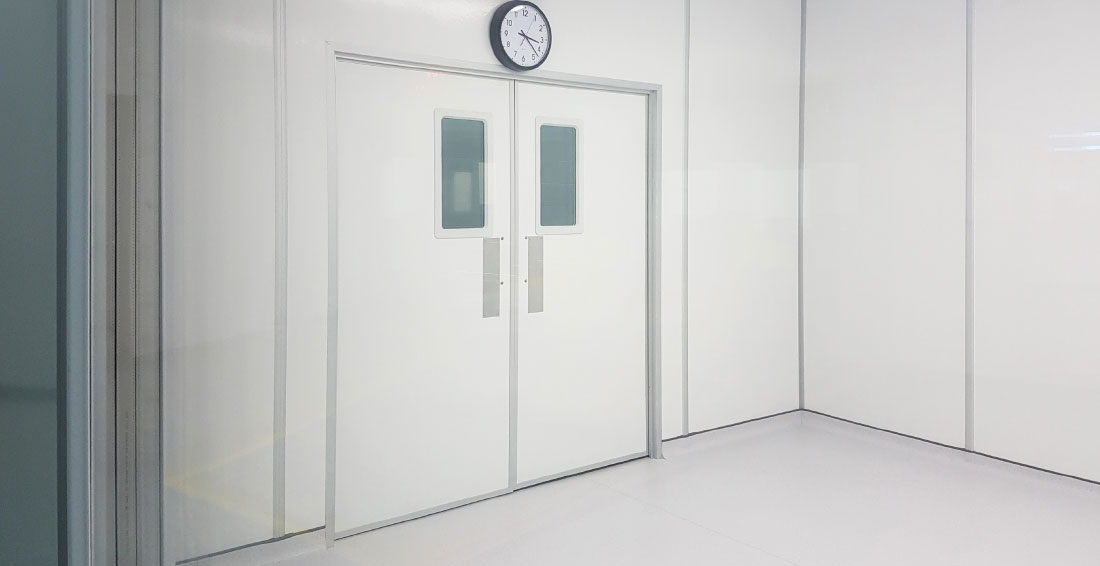

Clean Rooms Plus custom-made FRP doors are specifically designed to complement our wall systems, and are extremely durable. In addition to our standard FRP doors, we offer a variety of specialty doors.


AVAILABLE STYLES
  • Man doors

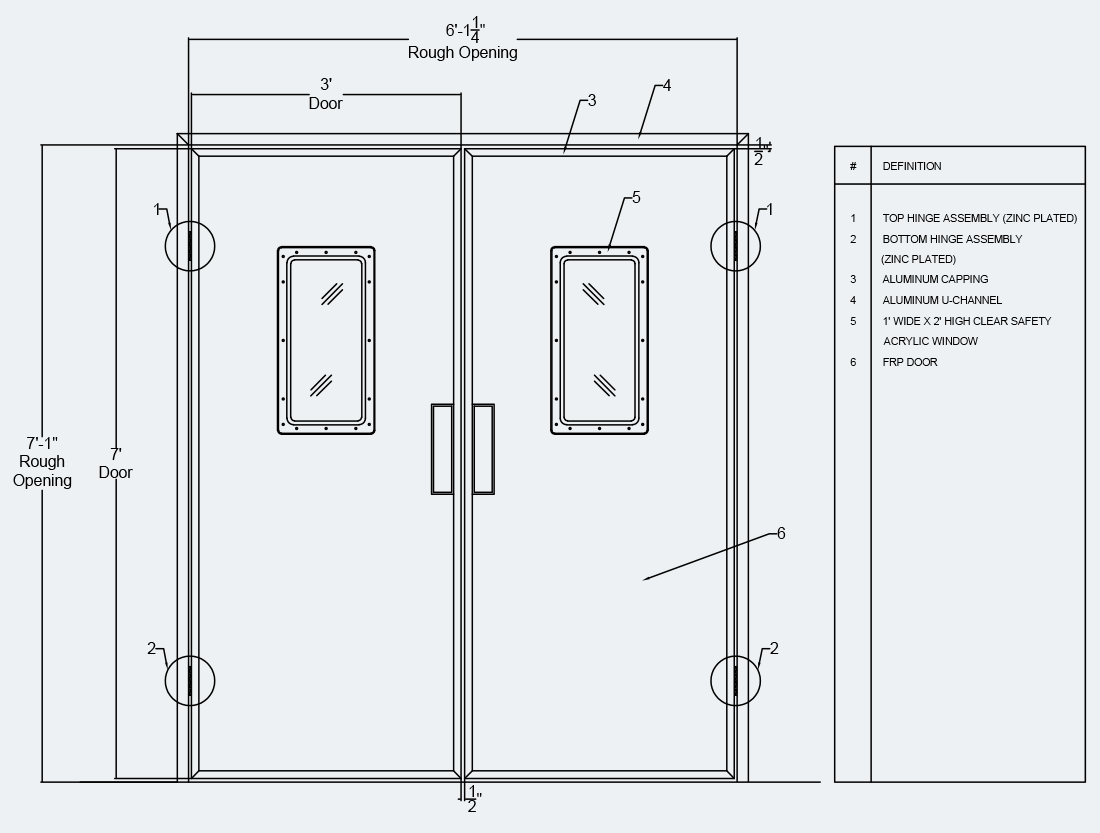

  • Double swing doors
  • Sliding doors
  • High speed roll-up doors
  • Manual or automatic doors
  • All doors come with a standard hardware package
  • Doors are available with or without vision panels
CUSTOMIZED, COST-EFFECTIVE DOOR & WINDOW SYSTEMS

Our acclaimed Door and Window Systems are widely used across the food industries where compliance with cleanliness standards are a key requirement. The cutting-edge manufacturing process behind our custom-built Clean Rooms Plus Door & Window Systems allow us to construct doors and windows of any size at no extra cost—a differentiator in the clean room industry where custom design and manufacturing services are typically billed at premium rates.


WINDOWS

Clean Room Plus windows come with a variety of options to suit your distinct project requirements. Our standard windows are Lexan, though we have many other options available based on your specifications.


FEATURES AND BENEFITS
  • Acrylic
  • Tempered glass
  • Various sizes are available
  • Safety glass
  • Tinted glass
  • Windows are designed to ensure a proper fit
  • Installed flush using silicone caulking
Clean Rooms Plus Ceilings
Clean Rooms Plus Ceilings
Clean Rooms Plus Ceilings
Clean Rooms Plus Ceilings
